Using LibGDX

This page shows you how you can create a Java* game using Multi-OS Engine and the libGDX library.

Contents:

Set Up Your Environment

Develop Your App

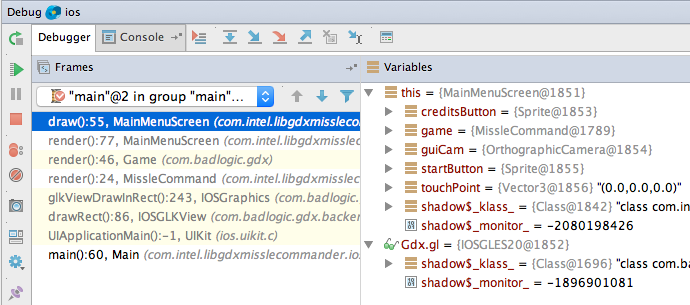

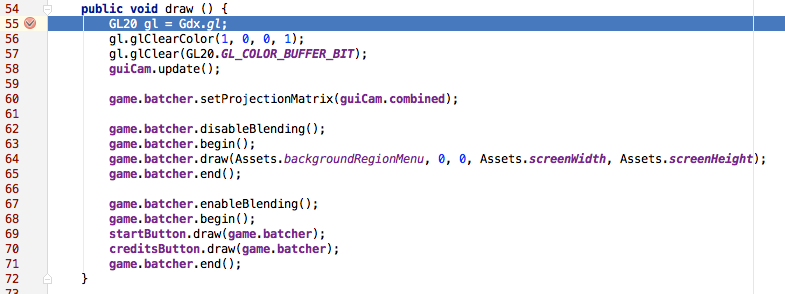

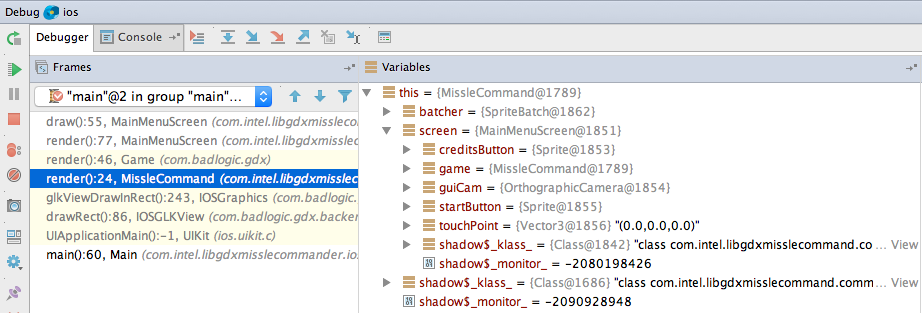

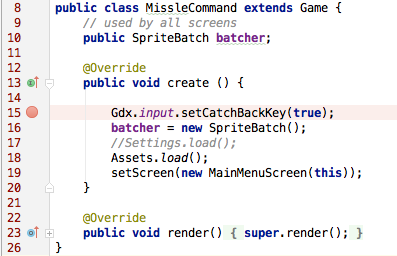

Debug Your App

Summary and Resources

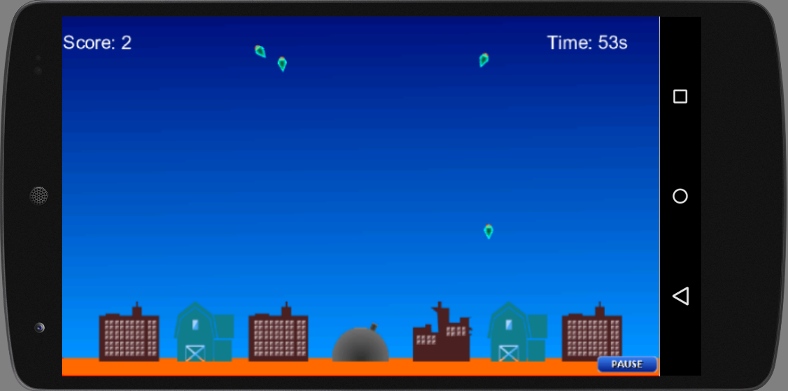

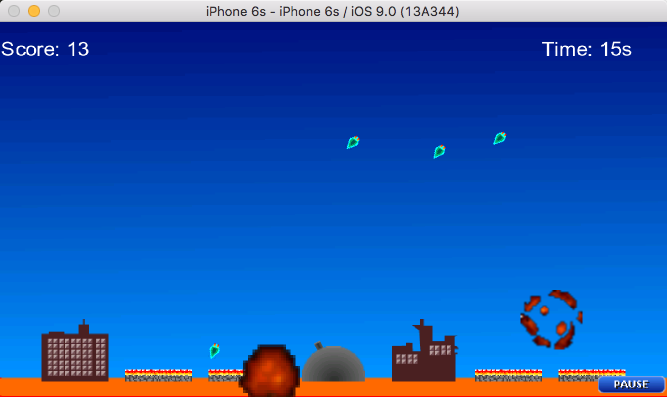

The screen shots below show the game running on an Android* device and an Apple iOS* device. On both operating systems, the game looks and behaves the same way. How is this achieved?

If you are not yet familiar with libGDX, this tutorial will help you start from scratch. So let’s begin. Scroll down!

../../../../_images/libgdx1.png ../../../../_images/libgdx2.png

Set Up Your Environment

First, install these applications:

  • Git

  • Android Studio

  • Multi-OS Engine, a plugin for Android Studio

You need to add Git to your system path.

Generating a new project

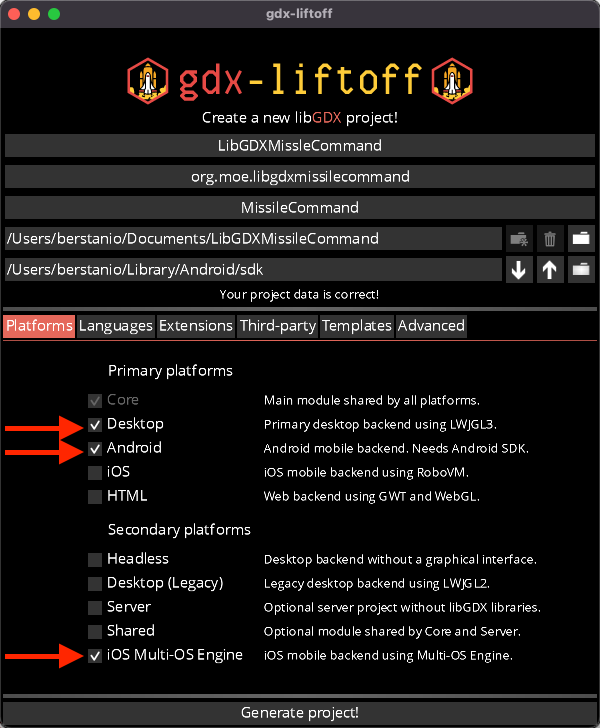

Download the newest release of [gdx-liftoff](https://github.com/tommyettinger/gdx-liftoff). Run the jar and configure the project. Make sure to select “iOS Multi-OS Engine” as backend, not iOS!

../../../../_images/libgdx3.png

Develop Your App

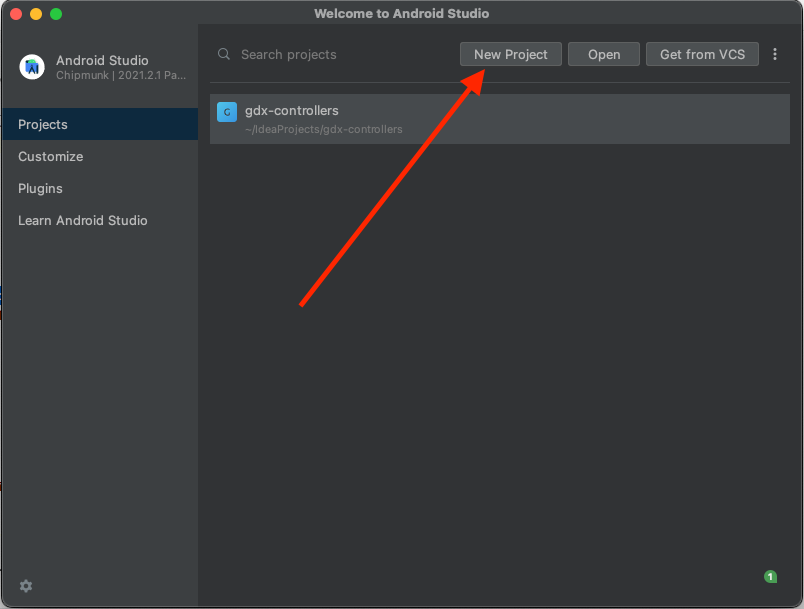

Open the generated project in Android Studio.

../../../../_images/libgdx4.png

So, we imported our project! Now let’s develop the common part for our application.

Core Code Part

First of all, create in the Core part a class called Assets for loading resources.

package org.moe.libgdxmissilecommand;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.audio.Sound;
import com.badlogic.gdx.files.FileHandle;
import com.badlogic.gdx.graphics.Texture;
import com.badlogic.gdx.graphics.g2d.Animation;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
public class Assets {
public static final float screenWidth = 800;
public static final float screenHeight = 480;
// Backgrounds
public static TextureRegion backgroundRegionMenu;
public static TextureRegion backgroundLoadGame1TextureRegion;
public static TextureRegion backgroundLoadGame2TextureRegion;
public static TextureRegion[] levelsBackgroundsTextureRegions = new TextureRegion[4];
// Buttons
public static TextureRegion backButtonTextureRegion;
public static TextureRegion pauseButtonTextureRegion;
public static TextureRegion startButtonTextureRegion;
public static TextureRegion creditsButtonTextureRegion;
// Player
public static TextureRegion playerBaseTextureRegion;
public static TextureRegion playerGunTextureRegion;
// Missiles
public static TextureRegion missileTextureRegion;
public static Sound missileSound;
// Explosions
public static Animation<TextureRegion> explosionAnimation;
public static Sound explosionSound;
// Cities
public static Animation<TextureRegion> citiesDestroyAnimation;
public static TextureRegion[] citiesTextureRegions = new TextureRegion[6];
// Naves
public static TextureRegion navesTextureRegion;
// Font file
public static FileHandle fontFile;
public static Sound alarmSound;
private static Texture loadTexture (String file) {
        return new Texture(Gdx.files.internal(file));
}
public static void load() {
        Texture backgroundMenuTexture = loadTexture("Splash2.png");
        backgroundRegionMenu = new TextureRegion(backgroundMenuTexture, 0, 0, 800, 480);
        Texture backgroundLoadGame1Texture = loadTexture("aviso1.png");
        backgroundLoadGame1TextureRegion = new TextureRegion(backgroundLoadGame1Texture, 0, 0, 800, 480);
        Texture backgroundLoadGame2Texture = loadTexture("aviso2.png");
        backgroundLoadGame2TextureRegion = new TextureRegion(backgroundLoadGame2Texture, 0, 0, 800, 480);
        for (int i = 0; i < levelsBackgroundsTextureRegions.length; i++) {
        Texture backgroundLevelTexture = loadTexture("bg" + String.valueOf(i + 1) + ".png");
        levelsBackgroundsTextureRegions[i] = new TextureRegion(backgroundLevelTexture, 0, 0, 800, 480);
        }
        Texture startButtonTexture = loadTexture("btStart.png");
        startButtonTextureRegion = new TextureRegion(startButtonTexture, 0, 0, 120, 43);
        Texture creditsButtonTexture = loadTexture("btCredits.png");
        creditsButtonTextureRegion = new TextureRegion(creditsButtonTexture, 0, 0, 144, 43);
        Texture backButtonTexture = loadTexture("btBack.png");
        backButtonTextureRegion = new TextureRegion(backButtonTexture, 0, 0, 106, 43);
        Texture pauseButtonTexture = loadTexture("btPause.png");
        pauseButtonTextureRegion = new TextureRegion(pauseButtonTexture, 0, 0, 81, 22);
        Texture playerBaseTexture = loadTexture("canhaopart1.png");
        playerBaseTextureRegion = new TextureRegion(playerBaseTexture, 0, 0, 75, 45);
        Texture playerGunTexture = loadTexture("canhaopart2.png");
        playerGunTextureRegion = new TextureRegion(playerGunTexture, 0, 0, 8, 45);
        Texture missileTexture = loadTexture("missil.png");
        missileTextureRegion = new TextureRegion(missileTexture, 0, 0, 5, 9);
        for (int i = 0; i < citiesTextureRegions.length; i++) {
        Texture cityTexture = loadTexture("city" + String.valueOf(i + 1) + ".png");
        citiesTextureRegions[i] = new TextureRegion(cityTexture, 0, 0, 80, 80);
        }
        Texture citiesDestroy = loadTexture("cidade.png");
        citiesDestroyAnimation = new Animation(0.2f, new TextureRegion(citiesDestroy,2,53,51,59),
                new TextureRegion(citiesDestroy,55,2,51,15));
    fontFile = Gdx.files.classpath("com/badlogic/gdx/utils/lsans-15.fnt");
        alarmSound = Gdx.audio.newSound(Gdx.files.internal("alarm.mp3"));
        missileSound = Gdx.audio.newSound(Gdx.files.internal("missil.mp3"));
        Texture explosion = loadTexture("explosao1.png");
        explosionAnimation = new Animation(0.2f, new TextureRegion(explosion,8,8,26,22),
                new TextureRegion(explosion,35,8,40,38), new TextureRegion(explosion,76,8,60,56),
                new TextureRegion(explosion,137,8,74,76), new TextureRegion(explosion,8,85,74,68),
                new TextureRegion(explosion,83,85,72,68), new TextureRegion(explosion,156,85,68,62),
                new TextureRegion(explosion,8,154,62,60), new TextureRegion(explosion,71,154,58,56));
        explosionSound = Gdx.audio.newSound(Gdx.files.internal("bomb.mp3"));
        Texture nave = loadTexture("naves.png");
        navesTextureRegion = new TextureRegion(nave, 12, 20);
}
public static void playSound(Sound sound) {
        sound.play(1);
}
}

Next, change the MissileCommand class. Write the following code in our MissileCommand.java file. Use the comments in this code to help understand it.

package org.moe.libgdxmissilecommand;
import com.badlogic.gdx.Game;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.graphics.g2d.SpriteBatch;
import org.moe.libgdxmissilecommand.screens.MainMenuScreen;
// Main game class
public class MissileCommand extends Game {
// used by all screens
public SpriteBatch batcher;
@Override
public void create () {
        Gdx.input.setCatchBackKey(true);
        batcher = new SpriteBatch();
        // Load resources
        Assets.load();
        // Draw main menu
        setScreen(new MainMenuScreen(this));
}
@Override
public void render() {
        super.render();
}
}

Next create package “screens” for all game screens and create class MainMenuScreen for the main menu.

package org.moe.libgdxmissilecommand.screens;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.Input;
import com.badlogic.gdx.ScreenAdapter;
import com.badlogic.gdx.graphics.GL20;
import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.graphics.g2d.Sprite;
import com.badlogic.gdx.math.Vector3;
import org.moe.libgdxmissilecommand.MissileCommand;
import org.moe.libgdxmissilecommand.Assets;
public class MainMenuScreen extends ScreenAdapter {
MissileCommand game;
OrthographicCamera guiCam;
Sprite startButton;
Sprite creditsButton;
Vector3 touchPoint;
public MainMenuScreen (MissileCommand game) {
        this.game = game;
        // initialize camera
        guiCam = new OrthographicCamera(Assets.screenWidth, Assets.screenHeight);
        guiCam.position.set(Assets.screenWidth / 2, Assets.screenHeight / 2, 0);
        // Create buttons
        startButton = new Sprite(Assets.startButtonTextureRegion);
        startButton.setPosition(Assets.screenWidth / 2 - startButton.getWidth() / 2, startButton.getHeight() * 2.5f);
        creditsButton = new Sprite(Assets.creditsButtonTextureRegion);
        creditsButton.setPosition(Assets.screenWidth / 2 - creditsButton.getWidth() / 2, creditsButton.getHeight());
        touchPoint = new Vector3();
}
// Find events
public void update () {
        if (Gdx.input.isKeyPressed(Input.Keys.BACK)) {
        Gdx.app.exit();
        }
        if (Gdx.input.justTouched()) {
        guiCam.unproject(touchPoint.set(Gdx.input.getX(), Gdx.input.getY(), 0));
        // Update screen
        if (startButton.getBoundingRectangle().contains(touchPoint.x, touchPoint.y)) {
                game.setScreen(new MissleCommandGameScreen(game));
                return;
        }
        if (creditsButton.getBoundingRectangle().contains(touchPoint.x, touchPoint.y)) {
                game.setScreen(new CreditsScreen(game));
                return;
        }
        }
}
// Draw elements
public void draw () {
        GL20 gl = Gdx.gl;
        gl.glClearColor(1, 0, 0, 1);
        gl.glClear(GL20.GL_COLOR_BUFFER_BIT);
        guiCam.update();
        game.batcher.setProjectionMatrix(guiCam.combined);
        game.batcher.disableBlending();
        game.batcher.begin();
        game.batcher.draw(Assets.backgroundRegionMenu, 0, 0, Assets.screenWidth, Assets.screenHeight);
        game.batcher.end();
        game.batcher.enableBlending();
        game.batcher.begin();
        startButton.draw(game.batcher);
        creditsButton.draw(game.batcher);
        game.batcher.end();
}
@Override
public void render (float delta) {
        update();
        draw();
}
}

Create the class CreditsScreen with some information about our game.

package org.moe.libgdxmissilecommand.screens;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.Input;
import com.badlogic.gdx.ScreenAdapter;
import com.badlogic.gdx.graphics.GL20;
import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.graphics.g2d.BitmapFont;
import com.badlogic.gdx.graphics.g2d.Sprite;
import com.badlogic.gdx.math.Vector3;
import org.moe.libgdxmissilecommand.MissileCommand;
import org.moe.libgdxmissilecommand.Assets;
public class CreditsScreen extends ScreenAdapter {
MissileCommand game;
OrthographicCamera guiCam;
Sprite backButton;
Vector3 touchPoint;
BitmapFont font;
public CreditsScreen(MissileCommand game) {
        this.game = game;
        font = new BitmapFont(Assets.fontFile);
        font.getData().setScale(0.7f);
        guiCam = new OrthographicCamera(Assets.screenWidth, Assets.screenHeight);
        guiCam.position.set(Assets.screenWidth / 2, Assets.screenHeight / 2, 0);
        backButton = new Sprite(Assets.backButtonTextureRegion);
        backButton.setPosition(Assets.screenWidth / 2 - backButton.getWidth() / 2, backButton.getHeight());
        touchPoint = new Vector3();
}
public void update () {
        if (Gdx.input.justTouched()) {
        guiCam.unproject(touchPoint.set(Gdx.input.getX(), Gdx.input.getY(), 0));
        if (backButton.getBoundingRectangle().contains(touchPoint.x, touchPoint.y)) {
                game.setScreen(new MainMenuScreen(game));
                return;
        }
        }
        if (Gdx.input.isKeyPressed(Input.Keys.BACK)){
        return;
        }
}
public void draw () {
        GL20 gl = Gdx.gl;
        gl.glClearColor(1, 0, 0, 1);
        gl.glClear(GL20.GL_COLOR_BUFFER_BIT);
        guiCam.update();
        game.batcher.setProjectionMatrix(guiCam.combined);
        game.batcher.disableBlending();
        game.batcher.begin();
        game.batcher.draw(Assets.backgroundRegionMenu, 0, 0, Assets.screenWidth, Assets.screenHeight);
        game.batcher.end();
        game.batcher.enableBlending();
        game.batcher.begin();
        backButton.draw(game.batcher);
        font.draw(game.batcher, "Programmer: Matheus Palheta\n\nGame Design: Jucimar Jr", 200, 320);
        game.batcher.end();
}
@Override
public void render (float delta) {
        update();
        draw();
}
@Override
public void pause () {
        //Settings.save();
}
}

Create the main game screen class MissleCommandGameScreen.

package org.moe.libgdxmissilecommand.screens;
import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.ScreenAdapter;
import com.badlogic.gdx.graphics.GL20;
import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.graphics.g2d.BitmapFont;
import com.badlogic.gdx.graphics.g2d.Sprite;
import com.badlogic.gdx.math.Rectangle;
import com.badlogic.gdx.math.Vector3;
import org.moe.libgdxmissilecommand.Assets;
import org.moe.libgdxmissilecommand.MissileCommand;
import org.moe.libgdxmissilecommand.models.City;
import org.moe.libgdxmissilecommand.models.GameObject;
import org.moe.libgdxmissilecommand.models.Nave;
import java.util.ArrayList;
public class MissleCommandGameScreen extends ScreenAdapter {
private MissileCommand game;
private OrthographicCamera guiCam;
private BitmapFont fontTime;
private BitmapFont fontTitle;
private int levelBackgroung = 0;
private long lastAttackTime = 0;
private float time = 0;
private boolean playing = true;
private Sprite pauseButton;
private Sprite backButton;
private Vector3 touchPoint;
private int wave = 1;
private long verNaves = 0;
private long score = 0;
private ArrayList<org.moe.libgdxmissilecommand.models.Missile> missiles = new ArrayList<>();
private ArrayList<Nave> naves = new ArrayList<>();
City[] cities = new City[6];
org.moe.libgdxmissilecommand.models.Player player;
public MissleCommandGameScreen(MissileCommand game) {
        this.game = game;
        fontTime = new BitmapFont(Assets.fontFile);
        fontTime.getData().setScale(0.5f);
        fontTitle = new BitmapFont(Assets.fontFile);
        fontTitle.getData().setScale(0.7f);

        // Initialize camera
        guiCam = new OrthographicCamera(Assets.screenWidth, Assets.screenHeight);
        guiCam.position.set(Assets.screenWidth / 2, Assets.screenHeight / 2, 0);

        // Create buttons
        pauseButton = new Sprite(Assets.pauseButtonTextureRegion);
        pauseButton.setPosition(Assets.screenWidth - (pauseButton.getWidth() + 2), 5);
        backButton = new Sprite(Assets.backButtonTextureRegion);
        backButton.setPosition(Assets.screenWidth - (backButton.getWidth() + 2), 2);
        touchPoint = new Vector3();
        // Create player
        player = new org.moe.libgdxmissilecommand.models.Player();
        player.setPosition(Assets.screenWidth / 2, Assets.screenHeight / 24);

        // Create cities
        City.resetCounter();
        for (int i = 0; i < cities.length; i++) {
        cities[i] = new City();
        }
}

// Draw elements
private void draw() {
        GL20 gl = Gdx.gl;
        gl.glClearColor(1, 0, 0, 1);
        gl.glClear(GL20.GL_COLOR_BUFFER_BIT);
        guiCam.update();
        game.batcher.setProjectionMatrix(guiCam.combined);
        game.batcher.begin();
        game.batcher.draw(Assets.levelsBackgroundsTextureRegions[levelBackgroung], 0, 0, Assets.screenWidth, Assets.screenHeight);
        game.batcher.end();
        game.batcher.enableBlending();
        if (playing)
        checkCollisions();
        game.batcher.begin();
        float dt = Gdx.graphics.getDeltaTime();
        for (City city : cities) {
        if (playing)
                city.update(dt);
        city.draw(game.batcher);
        }
        if (playing) {
        time -= dt;
        if (time > 20 / wave && (System.currentTimeMillis() - verNaves > 5000) && City.getCityCounter() > 0) {
                addNaves();
        }
        }
        int printTime = (int) time;
        if (printTime < 0)
        printTime = 0;
        fontTime.draw(game.batcher, "Time: " + String.valueOf(printTime) + "s",
                Assets.screenWidth - 150, Assets.screenHeight - 25);
        fontTime.draw(game.batcher, "Score: " + String.valueOf(score),
                2, Assets.screenHeight - 25);
        for(int i = 0; i < missiles.size(); i++) {
        org.moe.libgdxmissilecommand.models.Missile missile = missiles.get(i);
        if (missile.isAlive()) {
                if (playing)
                missile.update(dt);
                missile.draw(game.batcher);
        } else {
                missiles.remove(i);
                i--;
        }
        }
        player.draw(game.batcher);
        for(int i = 0; i < naves.size(); i++) {
        Nave nave = naves.get(i);
        if (nave.isAlive()) {
                if (playing)
                nave.update(dt);
                nave.draw(game.batcher);
        } else {
                naves.remove(i);
                i--;
        }
        }
        if (playing) {
        if (time <= 0) {
                fontTitle.draw(game.batcher, "Wave " + String.valueOf(wave) +
                        " Starts in " + String.valueOf((int)(3 + time)) + "s",
                        230, 240);
                if (time < -3) {
                time = 60;
                wave++;
                levelBackgroung = (wave - 2) % 4;
                }
        }
        pauseButton.draw(game.batcher);
        } else {
        if (City.getCityCounter() > 0) {
                fontTitle.draw(game.batcher, "Touch the screen to resuming the game",
                        100, 320 + fontTitle.getLineHeight());
                fontTitle.draw(game.batcher, "Or press back button to exit in the main menu",
                        70, 320 - fontTitle.getLineHeight());
        } else {
                fontTitle.draw(game.batcher, "You Lose!",
                        320, 320 + fontTitle.getLineHeight());
                fontTitle.draw(game.batcher, "Score: " + String.valueOf(score),
                        320, 320 - fontTitle.getLineHeight());
        }
        backButton.draw(game.batcher);
        }
        fontTime.draw(game.batcher, "fps: " + Gdx.graphics.getFramesPerSecond(), 0, 0);
        game.batcher.end();
}

// Check events
private void update() {
        if (City.getCityCounter() <= 0) {
        playing = false;
        }
        if (Gdx.input.justTouched()) {
        guiCam.unproject(touchPoint.set(Gdx.input.getX(), Gdx.input.getY(), 0));
        if (pauseButton.getBoundingRectangle().contains(touchPoint.x, touchPoint.y) && playing) {
                playing = false;
                return;
        }
        if (backButton.getBoundingRectangle().contains(touchPoint.x, touchPoint.y)) {
                game.setScreen(new MainMenuScreen(game));
                return;
        }
        if (!playing) {
                if (City.getCityCounter() > 0)
                playing = true;
                return;
        }
        if (System.currentTimeMillis() - lastAttackTime > 450 && touchPoint.y >= player.getY()) {
                lastAttackTime = System.currentTimeMillis();
                missiles.add(new org.moe.libgdxmissilecommand.models.Missile());
                missiles.get(missiles.size() - 1).detectTarget(touchPoint.x, touchPoint.y);
                player.setRotation(missiles.get(missiles.size() - 1).getRotation());
        }
        }
}

// Add new naves
private void addNaves() {
        naves.add(new Nave(wave));
        naves.add(new Nave(wave));
        naves.add(new Nave(wave));
        verNaves = System.currentTimeMillis();
}
@Override
public void render (float delta) {
        update();
        draw();
}
// Check all collisions in the game
private void checkCollisions() {
        for(int i = 0; i < naves.size(); i++) {
        for (City city : cities) {
                if (isCollision(naves.get(i), city)) {
                naves.get(i).kill();
                city.kill();
                }
        }
        for(int j = 0; j < missiles.size(); j++) {
                if (isCollision(naves.get(i), missiles.get(j)) && naves.get(i).kill()) {
                score++;
                missiles.get(j).kill();
                }
        }
        }
}

// Check collision
private <T extends GameObject> boolean isCollision(T obj1, T obj2) {
        Rectangle r1 = obj1.collisionRectangle();
        Rectangle r2 = obj2.collisionRectangle();
        return !(r1 == null || r2 == null) && r2.overlaps(r1);
}
}

We created all the screens for our game. So now we should create some models such as Player, Naves and others for our game. Create a new package models and create the base class GameObject for all objects in our game.

package org.moe.libgdxmissilecommand.models;
import com.badlogic.gdx.graphics.g2d.Sprite;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
import com.badlogic.gdx.math.Rectangle;
public class GameObject extends Sprite {
protected boolean alive = true;
protected float explosionTime;
GameObject(TextureRegion region) {
        super(region);
        explosionTime = -1;
}

// Check object
public boolean isAlive() {
        return alive;
}

// update object
public void update(float deltaTime) {}

// kill object
public boolean kill() {
        if (Float.compare(explosionTime, -1) == 0) {
        explosionTime = -100;
        return true;
        }
        return false;
}

// get collision rectangle for object
public Rectangle collisionRectangle() {
        if (!alive) {
        return null;
        }
        return getBoundingRectangle();
}
}

Create the Player class.

package org.moe.libgdxmissilecommand.models;
import com.badlogic.gdx.graphics.g2d.Batch;
import com.badlogic.gdx.graphics.g2d.Sprite;
import org.moe.libgdxmissilecommand.Assets;
public class Player extends GameObject {
private Sprite playerBase;
public Player() {
        super(Assets.playerGunTextureRegion);
        playerBase = new Sprite(Assets.playerBaseTextureRegion);
        setOrigin(getWidth() / 2, 0);
}
@Override
public void setPosition(float x, float y) {
        // Need override only for playerBase sprite
        super.setPosition(x - getWidth() / 2, y + 10);
        playerBase.setPosition(x - (playerBase.getWidth() / 2), y);
}
@Override
public void draw(Batch batch) {
        // Need override only for playerBase sprite
        super.draw(batch);
        playerBase.draw(batch);
}
}

Create the Missile class.

package org.moe.libgdxmissilecommand.models;
import com.badlogic.gdx.graphics.g2d.Batch;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
import com.badlogic.gdx.math.Vector2;
import org.moe.libgdxmissilecommand.Assets;
public class Missile extends GameObject {
// Speed of missile
private final float speed = 600.0f;
private float targetY;
public Missile() {
        super(Assets.missileTextureRegion);
        setPosition(Assets.screenWidth / 2, Assets.screenHeight / 24 + 10);

        // Start sound
        Assets.playSound(Assets.missileSound);
        targetY = 0;
}

// Detect missile target
public void detectTarget(float x, float y) {
        targetY = y;
        Vector2 tempVector = new Vector2(x, y);
        setRotation(tempVector.sub(this.getX(), this.getY()).angle() - 90);
}
@Override
public void update(float deltaTime) {
        // Move missile
        if (getY() > targetY || getX() < 0 || getX() > Assets.screenWidth || explosionTime >= 0) {
        explosionTime += deltaTime;
        return;
        }
        float hypotenuse = speed*deltaTime;
        float shiftY = (float) Math.abs((hypotenuse * Math.cos(getRotation() * Math.PI/180)));
        float shiftX = (float) Math.abs((hypotenuse * Math.sin(getRotation() * Math.PI/180)));
        if (Math.sin(getRotation() * Math.PI / 180) > 0) {
        shiftX = -shiftX;
        }
        setPosition(getX() + shiftX, getY() + shiftY);
}
@Override
public void draw(Batch batch) {
        if (getY() > targetY || getX() < 0 || getX() > Assets.screenWidth || Float.compare(explosionTime, -1) != 0) {
                // Draw explosion animation
        if (explosionTime < 0) {
                explosionTime = 0;
                Assets.playSound(Assets.explosionSound);
        }
        TextureRegion keyFrame = Assets.explosionAnimation.getKeyFrame(explosionTime, false);
        batch.draw(keyFrame, getX() - 74 / 2, getY() - 76 / 2, 74, 76);
        if (Assets.explosionAnimation.isAnimationFinished(explosionTime))
                alive = false;
        } else {
                // Draw missile
        super.draw(batch);
        }
}
}

Now create the class Nave.

package org.moe.libgdxmissilecommand.models;
import com.badlogic.gdx.graphics.g2d.Batch;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
import org.moe.libgdxmissilecommand.Assets;
import java.security.SecureRandom;
public class Nave extends GameObject {
private float velX = 0, velY = 0;
public Nave(int wave) {
        super(Assets.navesTextureRegion);
        SecureRandom random = new SecureRandom();
        // Init position
        int posX = random.nextInt((int) Assets.screenWidth);
        setPosition(posX, Assets.screenHeight);
        // Calculate init rotation
                float angle;
        if (posX < 400) {
        angle = -random.nextFloat() * 45;
        velX = (float) (Math.sin(angle * Math.PI/180) * (wave / 2));
        velY = (float) (Math.cos(angle * Math.PI/180) * (wave / 2));
        } else {
        angle = random.nextFloat() * 45;
        velX = (float) (Math.sin(angle * Math.PI/180) * (wave / 2));
        velY = (float) (Math.cos(angle * Math.PI/180) * (wave / 2));
        }
        setRotation(-angle);
}
@Override
public void update(float deltaTime) {
        // Move nave
        if (getY() < 30 || explosionTime >= 0) {
        explosionTime += deltaTime;
        return;
        }
        setPosition(getX() - velX, getY() - velY);
}
@Override
public void draw(Batch batch) {
        if (getY() < 30 || Float.compare(explosionTime, -1) != 0) {
                // Draw explosion animation
        if (explosionTime < 0) {
                explosionTime = 0;
                Assets.playSound(Assets.explosionSound);
        }
        TextureRegion keyFrame = Assets.explosionAnimation.getKeyFrame(explosionTime, false);
        batch.draw(keyFrame, getX() - 74 / 2, getY() - 76 / 2, 74, 76);
        if (Assets.explosionAnimation.isAnimationFinished(explosionTime))
                alive = false;
        } else {
                // Draw nave
        super.draw(batch);
        }
}
}

And also create class City for cities.

package org.moe.libgdxmissilecommand.models;
import com.badlogic.gdx.graphics.g2d.Batch;
import com.badlogic.gdx.graphics.g2d.TextureRegion;
import org.moe.libgdxmissilecommand.Assets;
import java.security.SecureRandom;
public class City extends GameObject {
// Cities counter
static long cityCounter = 0;
public City() {
        // Take random texture
        super(Assets.citiesTextureRegions[new SecureRandom().nextInt(6)]);
        // Init position
        if (cityCounter < 3) {
        setPosition(50  + ((Assets.screenWidth - 200) / 6) * cityCounter, Assets.screenHeight / 24);
        } else {
        setPosition(50  + ((Assets.screenWidth - 200) / 6) * cityCounter + 120, Assets.screenHeight / 24);
        }
        cityCounter++;
}

// Reset counter
public static void resetCounter() {
        cityCounter = 0;
}

// Get counter
public static long getCityCounter() {
        return cityCounter;
}
@Override
public void update(float deltaTime) {
        // Update explosion animation
        if (explosionTime >= 0)
        explosionTime += deltaTime;
}
@Override
public void draw(Batch batch) {
        if (Float.compare(explosionTime, -1) != 0) {
                // Draw animation
        if (explosionTime < 0) {
                explosionTime = 0;
                Assets.playSound(Assets.explosionSound);
        }
        TextureRegion keyFrame = Assets.citiesDestroyAnimation.getKeyFrame(explosionTime, false);
        if (Assets.citiesDestroyAnimation.getKeyFrameIndex(explosionTime) == 1) {
                batch.draw(keyFrame, getX(), getY(), getWidth(), 15);
                if (isAlive())
                cityCounter--;
                alive = false;
        } else {
                batch.draw(keyFrame, getX(), getY(), getWidth(), getHeight());
        }
        } else {
                // Draw city
        super.draw(batch);
        }
}
}

That completes the common part of our application! Now we can start to develop the Android and/or iOS parts of our game.

Android Code Part

All configuartion is already done by the generator.

Asset Part

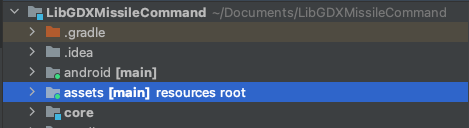

Finally, add images, sounds and others asset files for our game. You can download these files from `here https://github.com/jucimarjr/html5games/tree/master/cocos2d/MissileCommand/assets`_ (All resources are distributed under MIT license). After you download these files, copy them to the “assets” directory. Rename the files a.png-g.png to city[1…6].png.

../../../../_images/libgdx5.png

Congratulations! We completed our Android game. Now we can build and run the game! You can see the running app in the screen shot below.

../../../../_images/libgdx6.png

iOS Code Part

The code is already fully functional generated.

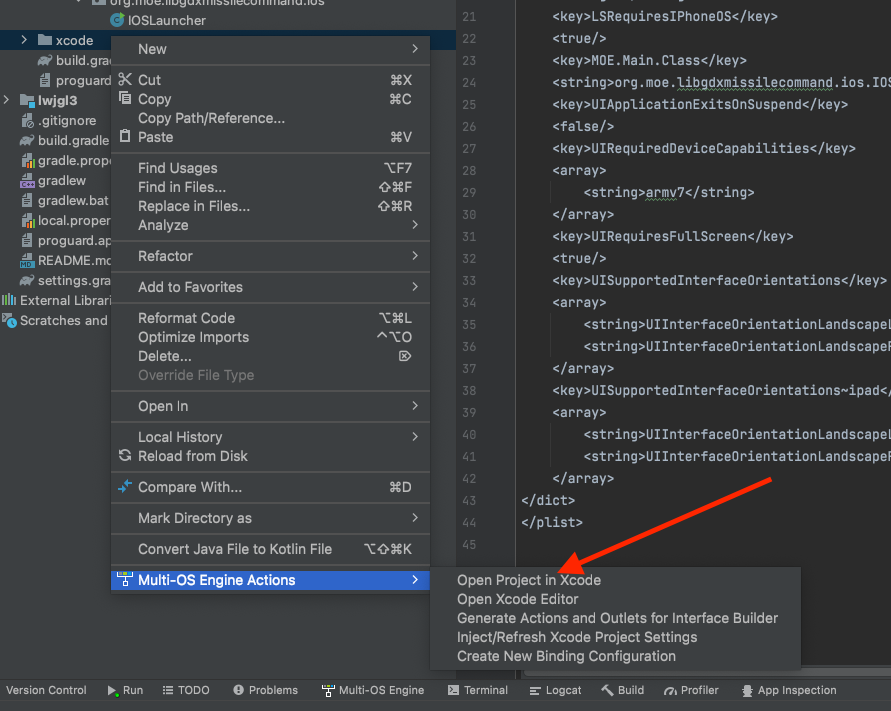

Now we will modify the Xcode project. Right-click its name and select Multi-OS Engine > Open Project in Xcode.

../../../../_images/libgdx7.png

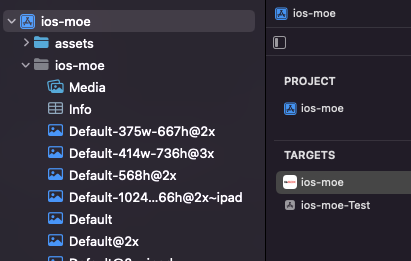

The Xcode project will be opened and we should see the next screen:

../../../../_images/libgdx8.png

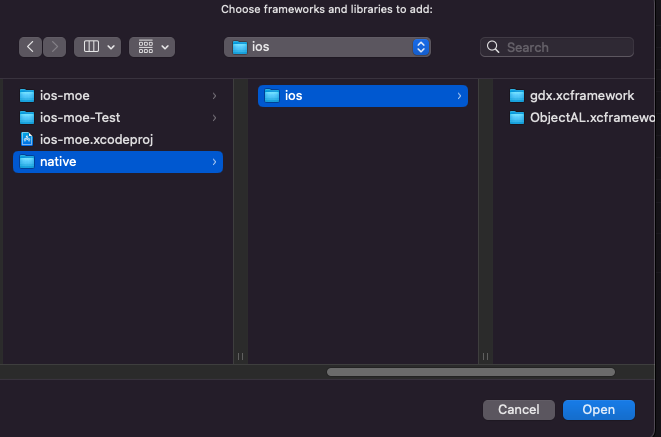

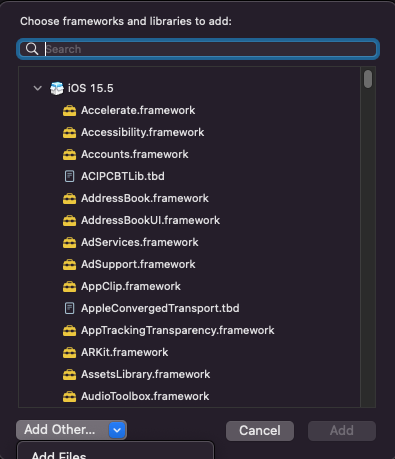

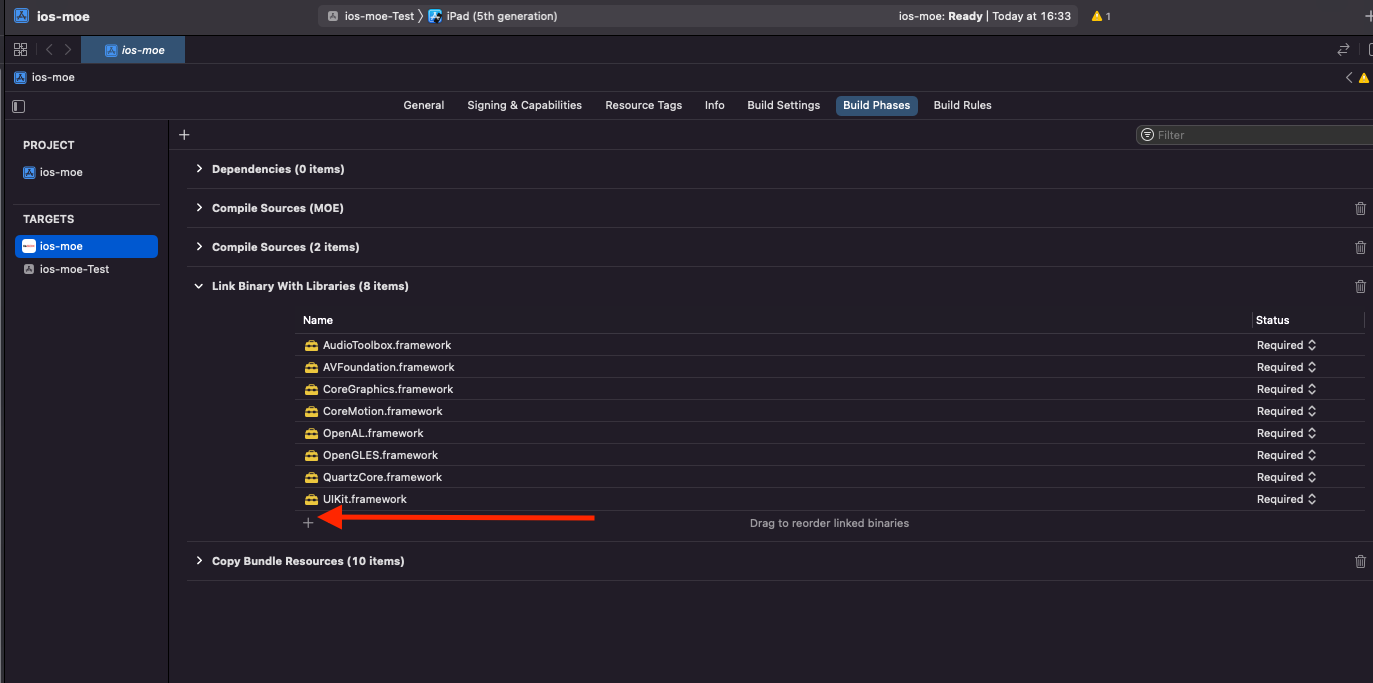

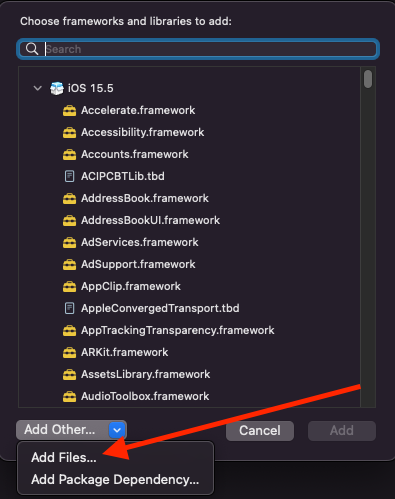

Than, add the necessary frameworks to our application.

../../../../_images/libgdx9.png ../../../../_images/libgdx10.png ../../../../_images/libgdx11.png ../../../../_images/libgdx12.png

Add all xcframeworks available.

Congratulations! We completed our iOS game and our application. You can see iOS game screenshot below.

../../../../_images/libgdx14.png

Debug Your App

We can now explore how you can debug your libGDX application. The libGDX debug process is not specific, so we can debug our libGDX game as usual Multi-OS Engine app. To begin, set some breakpoints.

For example, set two breakpoints in our common code part. First, set a breakpoint at the start of game creating function (create()) at line 15 (MissleCommand.java:MissleCommand.create():15).

../../../../_images/libgdx20.png

Set the second breakpoint in file MainMenuScreen.java line 55 (start of draw function). (MainMenuScreen. MainMenuScreen.draw():55).

../../../../_images/libgdx21.png

Now we can run our application with debugging. While debugging, use all opportunities to debug your code such as Step Over, Step Into, Resume program. Also you can use stack trace to help debug your application.

../../../../_images/libgdx22.png

Use a stack trace to see values of variables on a previous step. You can see it below.

../../../../_images/libgdx23.png

You can download all Multi-OS Engine samples here (Java) and here (Kotlin).

Summary and Resources

LibGDX development with the Multi-OS Engine has many advantages, including:

  • The biggest part of application is the common part.

  • The common part uses familiar Java syntax.

  • You can debug two targets side-by-side using the powerful iOS simulator and Android emulator.
